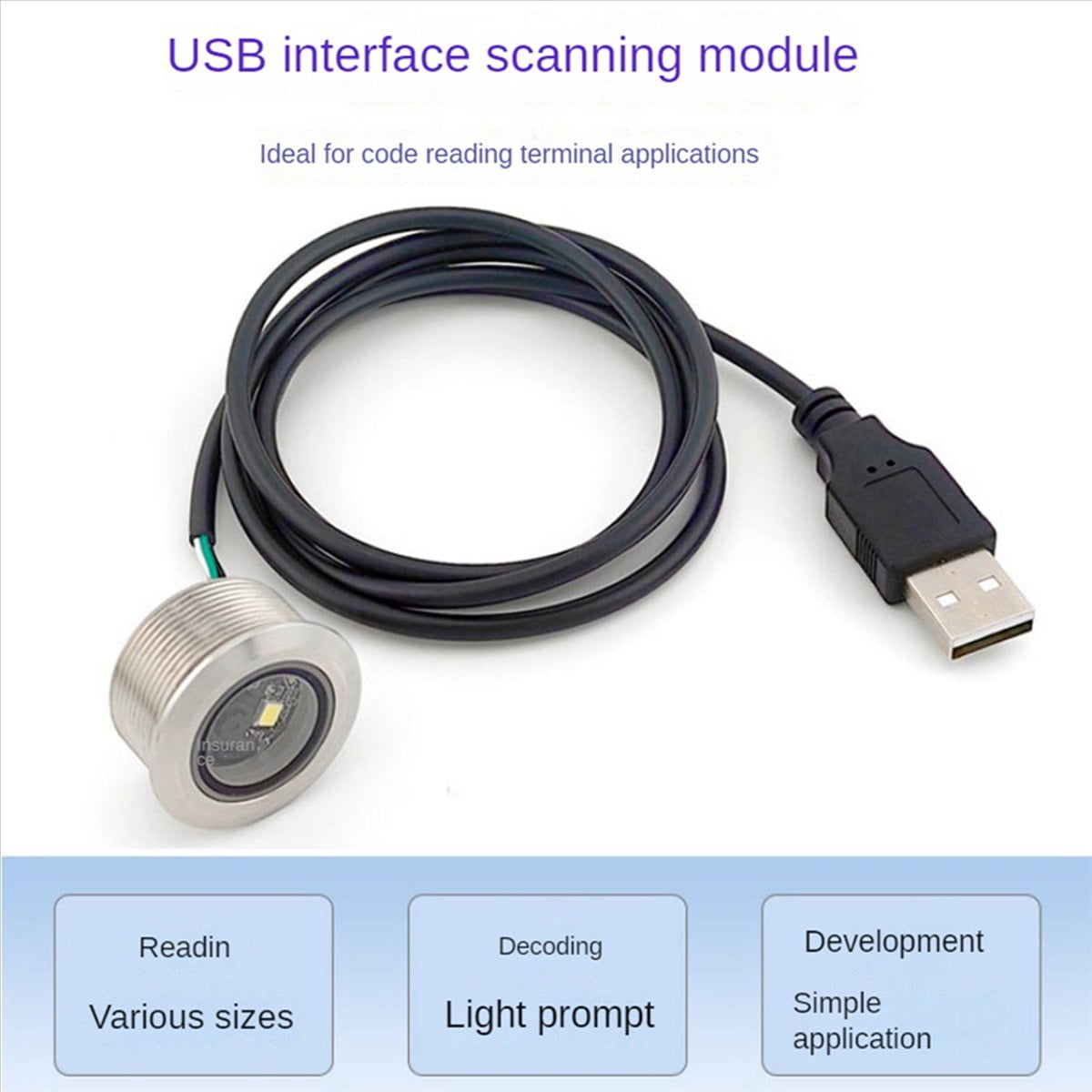

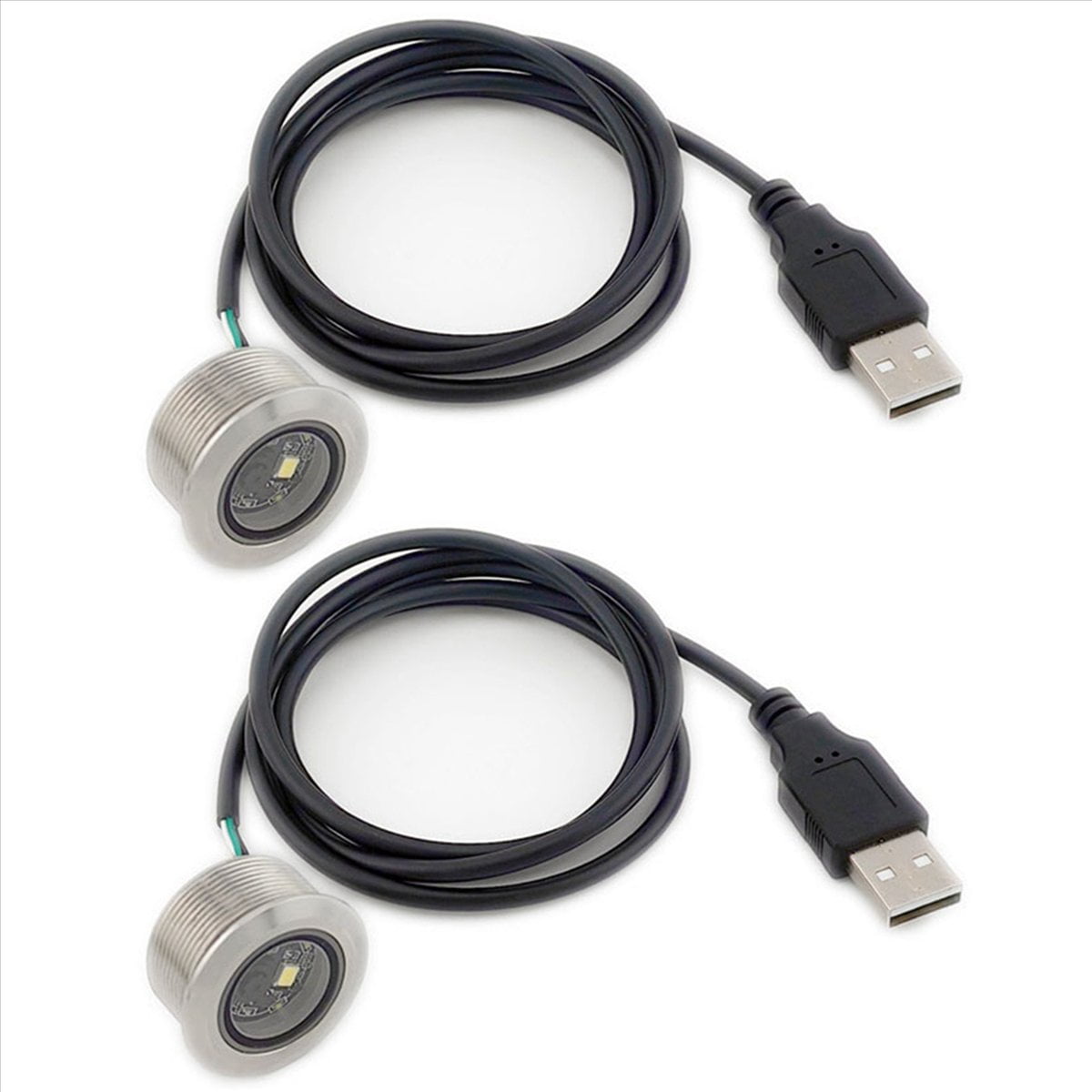

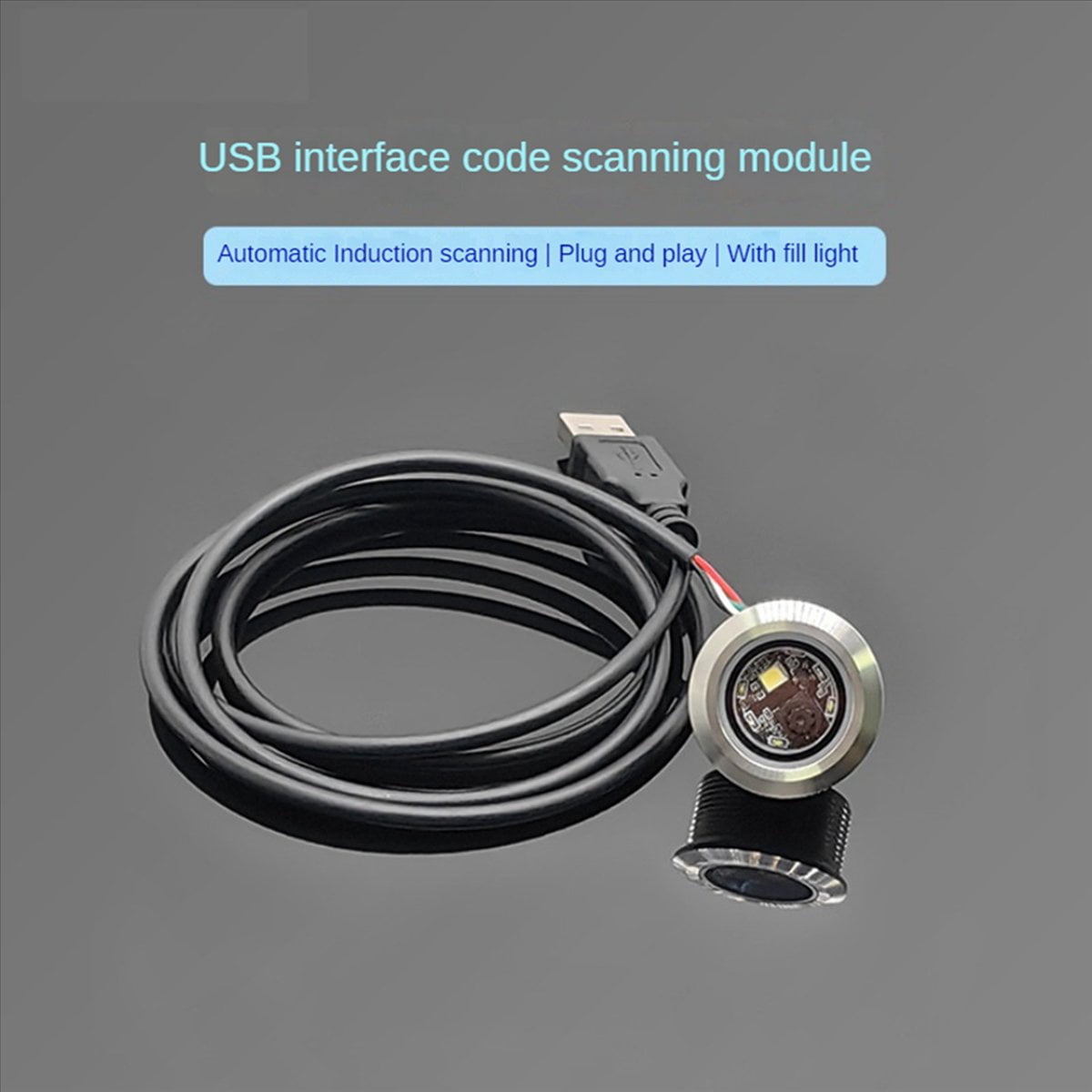

2X GM861 USB Interface 1D/2D Bar Code QR Code Barcode Scanner Module Stainless Steel Thread with Fill Light

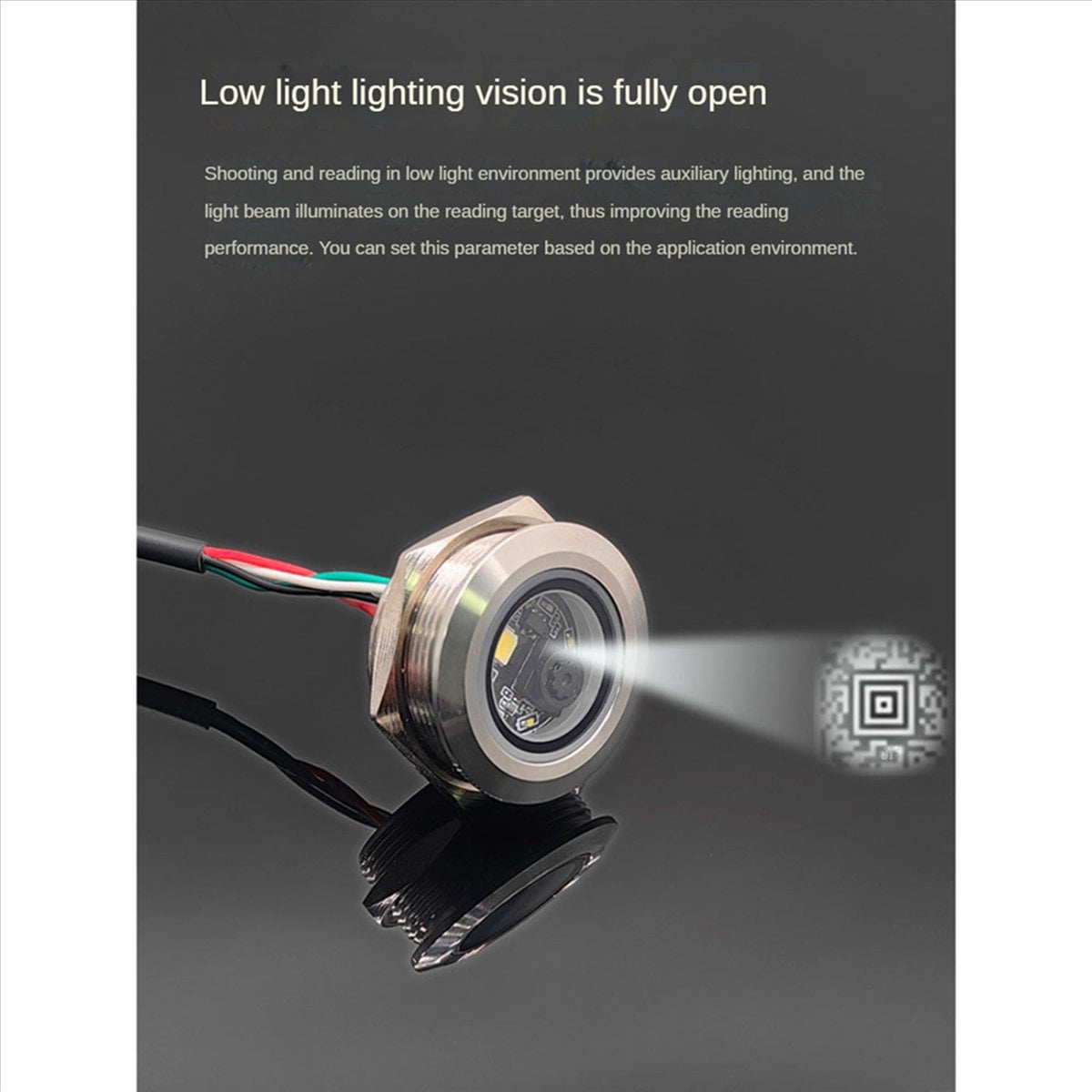

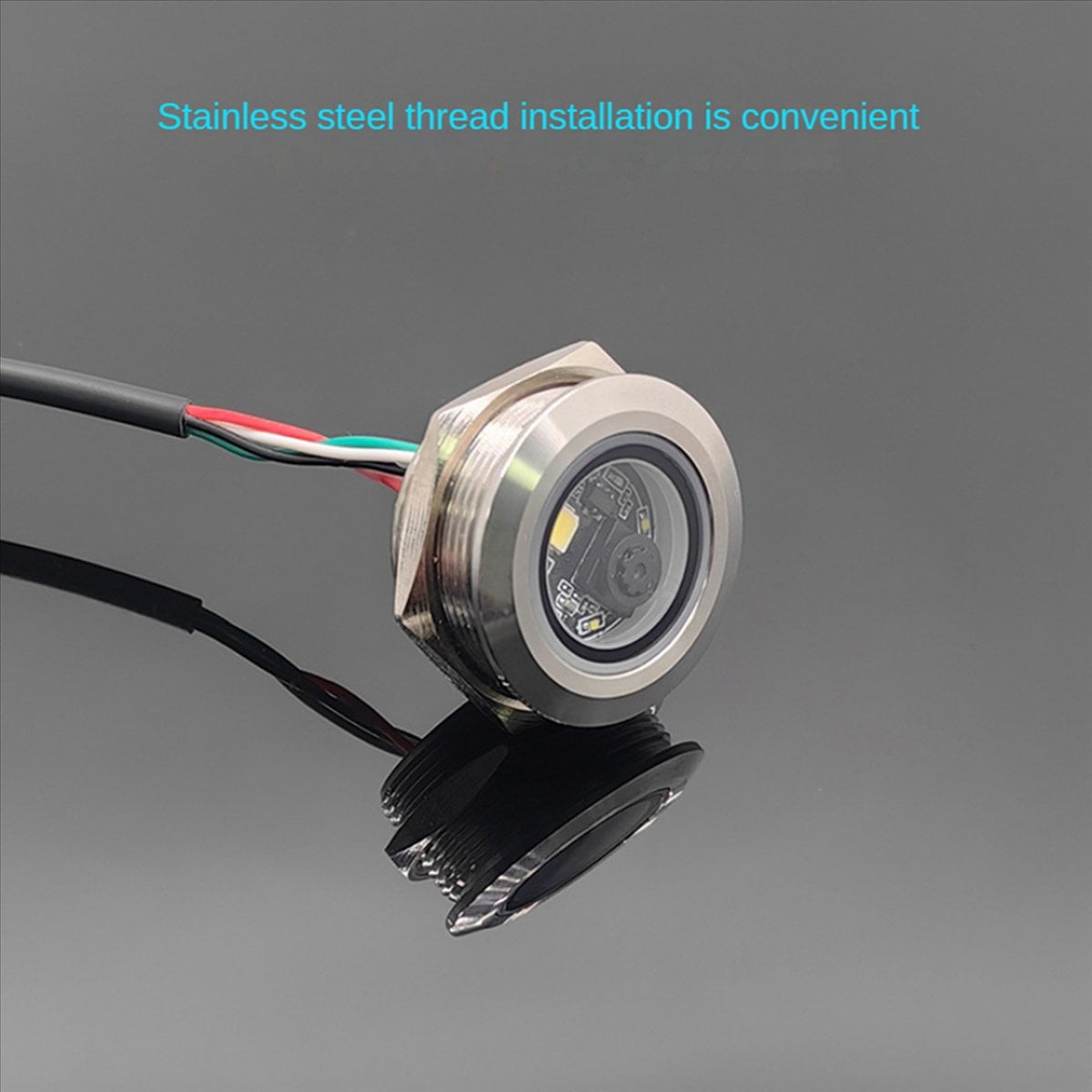

It can read code systems, decode light prompts, and is easy to develop and apply.<br>Stainless steel thread design, easy to install.<br>The supplementary lighting design provides auxiliary lighting for reading in low-light environments, and shines on the reading target to improve reading performance. Users can set it according to the application environment.<br>Multi-system compatibility: supports Windowsxp, Windows7, Windows8, Windows10, Linux, Android, forMacOS and other mainstream operating systems on the market.<br><br>Parameter:<br>Image sensor: CMOS<br>Pixel: 640 x 480<br>Prompt light: Green light indicates successful reading<br>Reading code system:<br>1D:-13.-8, UPC-A UPC-E ISSN, , CodaBarCode<br>128,Code93,ITF-14,ITF-6, Interleaved 2 of 5, Industrial 2 of 5,<br>Matrix 2 of5, Code 39,Code 11, -Plessey, GS1-Databar (RsS)<br>2D: QR Code, Data Matrix, PDF417, Micro-PDF417.<br>Micro-QR, <br>Symbol contrast: 25%<br>Reading angle: 360° rotation, 65° deflection, 65° tilt<br>Scanning angle: 67° (horizontal), 53° (vertical)<br>Reading accuracy: 210mil<br>Communication interface: USB<br>Prompt mode: LED indication<br>Working voltage: 5V<br>Working current: Less than 70mA<br>Sleep current: ≤6mA (typical value)<br>Startup time: ≤250ms (typical value)<br>Colour:black+silver<br>Material:Plastic + stainless steel<br><br>Package Contents:<br>2 x Scan module<br><br>Only the above package content, other products are not included.<br>Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
