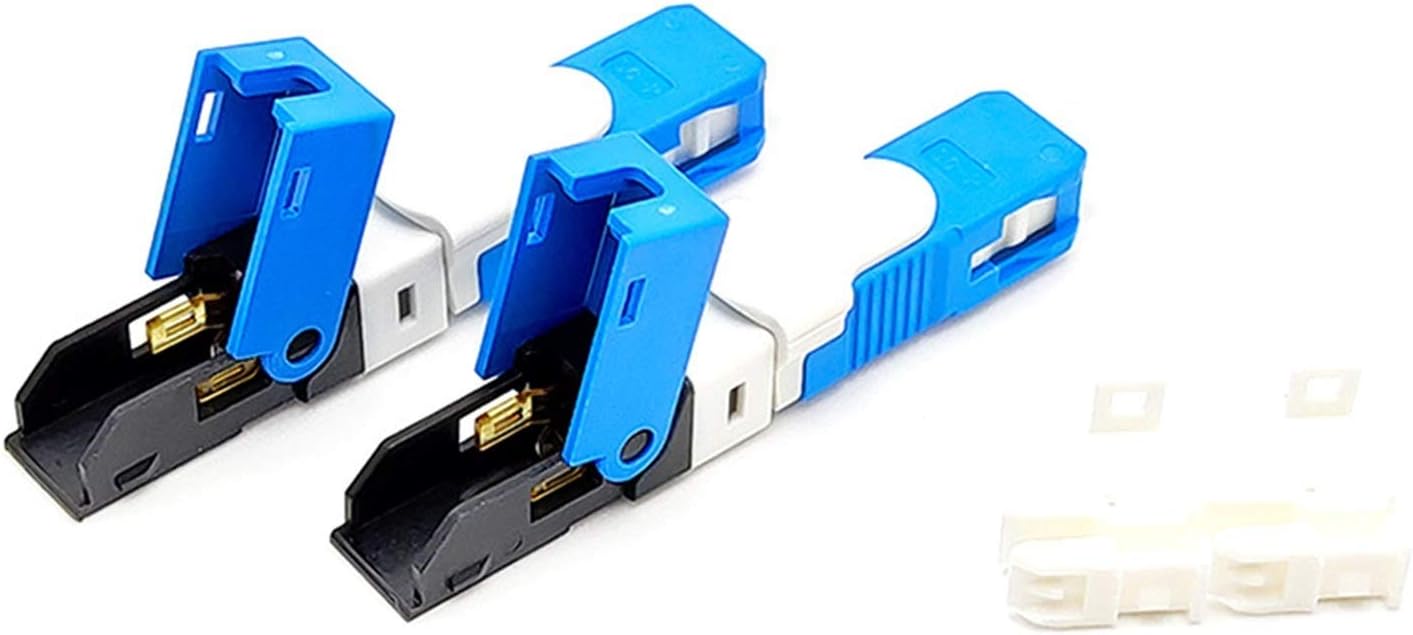

Fiber Optic Converter Adapter Single-Mode Fiber SC UPC Quick Connector Optical Fiber Quick Connector Converter

UUNVTOSUApplicable to:Telecom-CATV engineering and maintenance,optical network maintenance,optical measurement drive engineering,wiring system and other optical fiber engineering;excellent performance and working stabilityFeature:1.FTTH project is available2.Can be installed on site3.Insertion loss is less than 0.3dB4.The metal V-shaped cavity can work normally at high and low temperatures5.Installation takes less than 1 minute6.Reliable optical performanceapplication:1.Distribution frame2.Maintenance or emergency restoration of fiber optic network3.Distribution frame4.FTTH 5.Domain wordsprojectTechnical ParametersApply toIncoming cable/indoor cable2.0mm,3.0mm lead-in cableFiber diameterSM,MM125μmSmall buffer diameter250 micronsFiber ModeSingle modeOperating About 100s Insertion loss≤0.3dBReturn loss>50db,>55db,>65dbFixed strength of bare fiber>5 NFastening strength of bare fiber holder>10 Ntensile strength>50 NOperating temperature-40~+75°COnline tensile strengthIL≤0.5dB RL≤5dBMechanical durability IL≤0.5dB RL≤5dB

• The connector is small in size,light in weight,small in size and easy to carry.
• Can be installed on site
• Insertion loss is less than 0.3dB
• Metal V-shaped cavity can work normally at high and low temperatures
• Less than 1 minute to install
