Henkion OTDR Optical Fiber Tester 1310/1550nm 26/24dB Mini Optical Network Tester Fiber Test Support Curve Operation, Event Map RJ45 Secquence/Tracker File Setting
US$36.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by pbcservices.us
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$36.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by pbcservices.us
Free 30-day returns Details
Product details
| Management number | 211307090 | Release Date | 2026/04/04 | List Price | US$36.00 | Model Number | 211307090 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

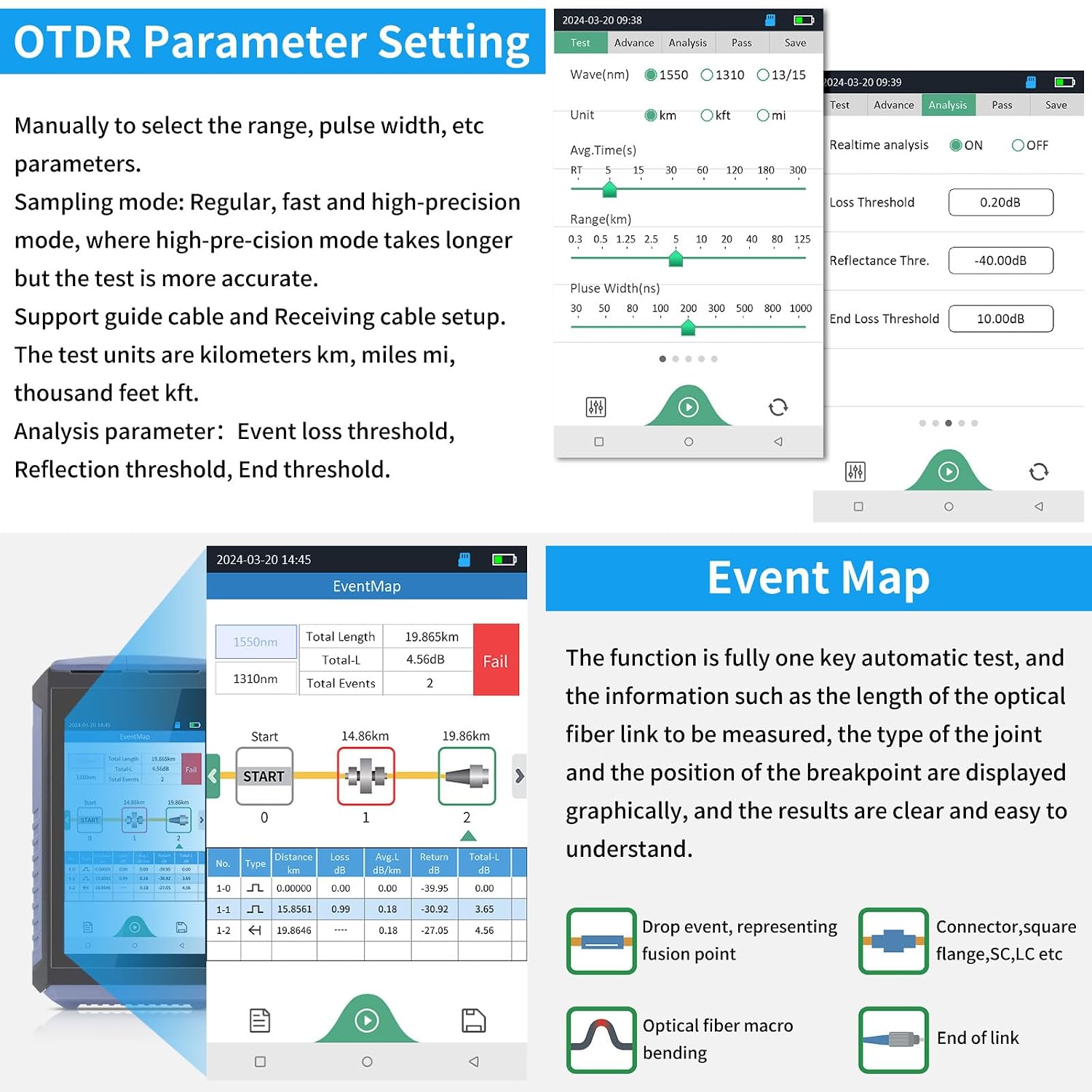

- 【Mini Intelligent OTDR measurement】OTDR fiber optical tester provides wavelength of 1310/1550nm and dynamic range of 26/24dB,the max test distance 100km.For auto test mode: can one click start test,only select the wavelength and test time,quickly perform the test.For parameters setting mode:Testing after setting parameters distance scope,pulse width,duration of measurement etc.The test results will be more accurate. Pls note:This mode doesn't support live test.
- 【Curve Analysis & Shortest EDZ ADZ & Data Storage】Mini OTDR optical fiber tester support dual wavelength testing and can measure macro bends.The OTDR fiber tester can analyzes the curve automatially,touch screen zoom or move curves operation.The tested results are displayed in the form of a list.Event list clearly reflects the type of event,distance,loss,decay,reflection. Shortest event dead zone (1.5m) and attenuation dead zone (8m).
- 【 OPM VFL LS Tools & File Setting】4.3 inch touch touch capacitive screen OTDR tester, clear display, smooth control. Optical fiber tools widely used in FTTX,optical network engineering construction.Optical power meter--used for optical power testing and fiber link loss relative measurement.LS--Wavelength:1310/1550nm. VFL--Type: Class 2; Power<1mW,Wavelength:650nm.
- 【Event map & RJ45 Sequence/Tracker 】Five type of events, event map can one key automatic test,and the information such as the length of the optical fiber link to be measured,the type of the joint and the position of the breakpoint are displayed graphically. RJ45 sequence test can test straight-through network cable and crossover network cable detection. With cable tracer,can quickly find out the network cable from the mess cables.
- 【Brand Services】Dimension/Weight:3.35x5.67x1.32inch/0.75lbs. Before test or test result is not accurate, please using the alcohol cotton to clean the fiber connector.We offer 24h technical support and 1 year warranty.
| Color | Blue |
|---|---|
| Model | RSO-4200 |
| Brand Name | Henkion |
| Manufacturer | Henkion |
| Power Source | Battery Powered |
| Item Dimensions | 5.6 x 1.3 x 3.3 inches |

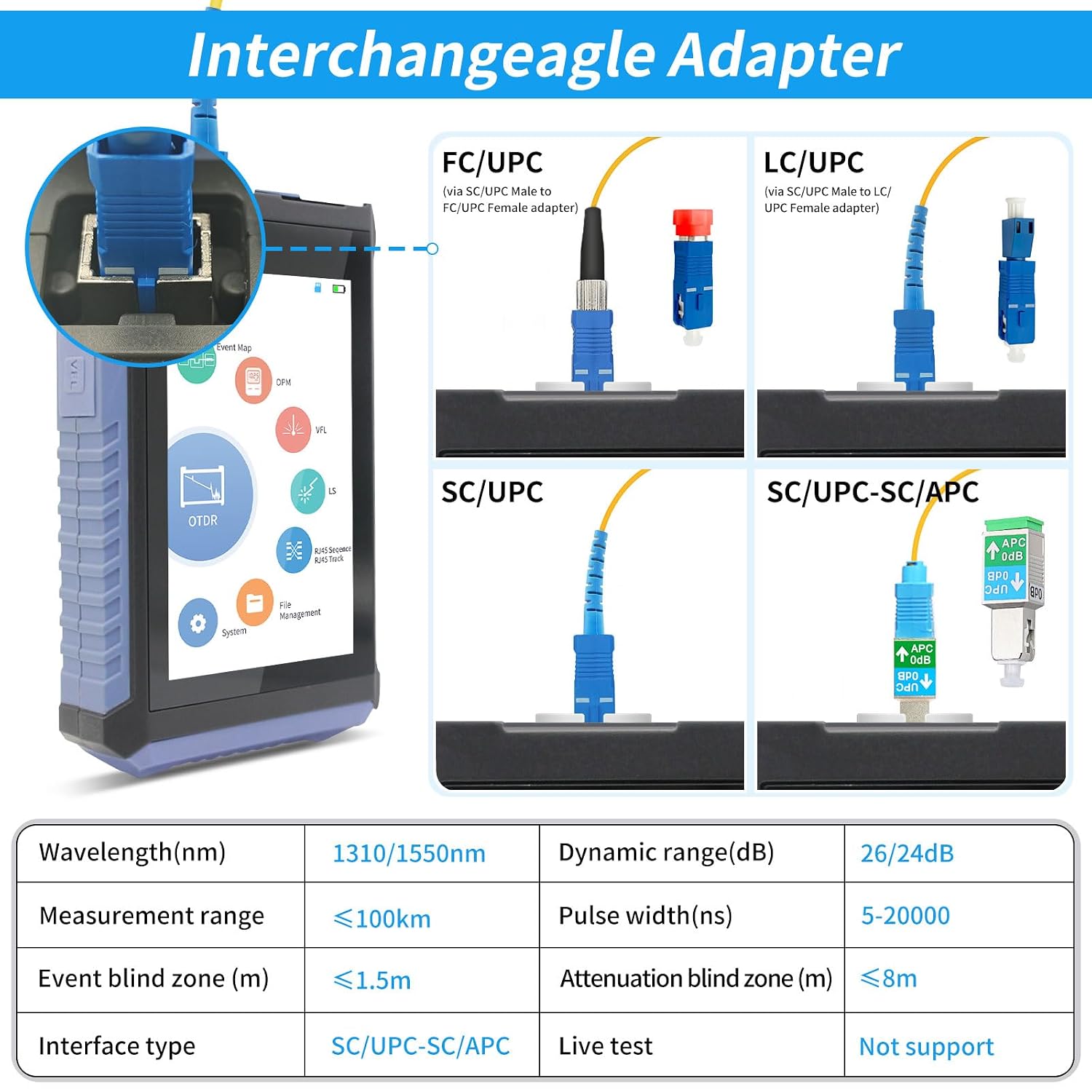

| Included Components | SC/UPC SC/UPC-SC/APC，SC/UPC-LC/UPC |
