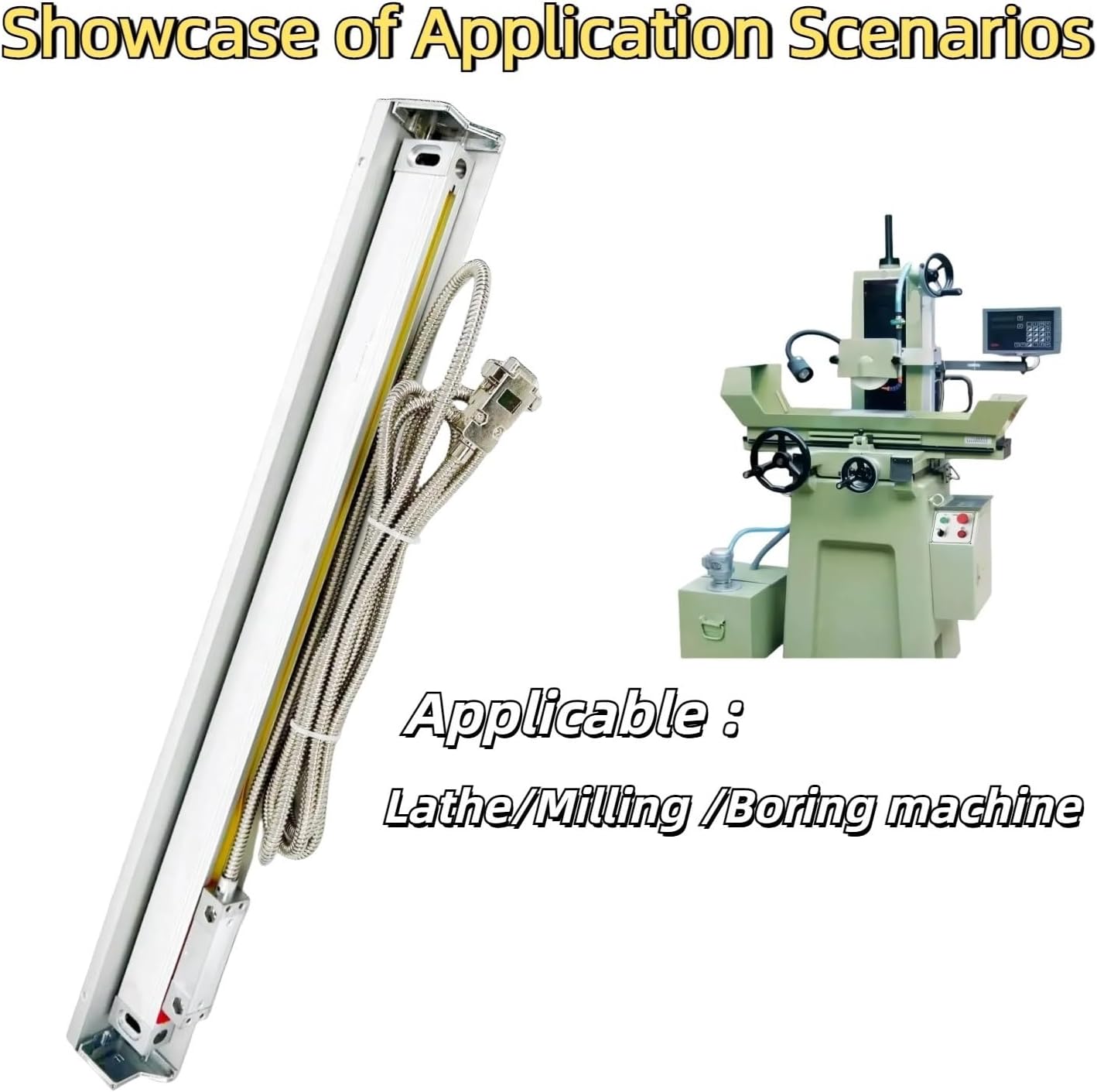

KA35 High Accuracy 0.005mm TTL DRO 100 150 200 250 300 350 400mm Slim Linear Scale Optical Encoder Optical Grating Ruler，5U 100mm

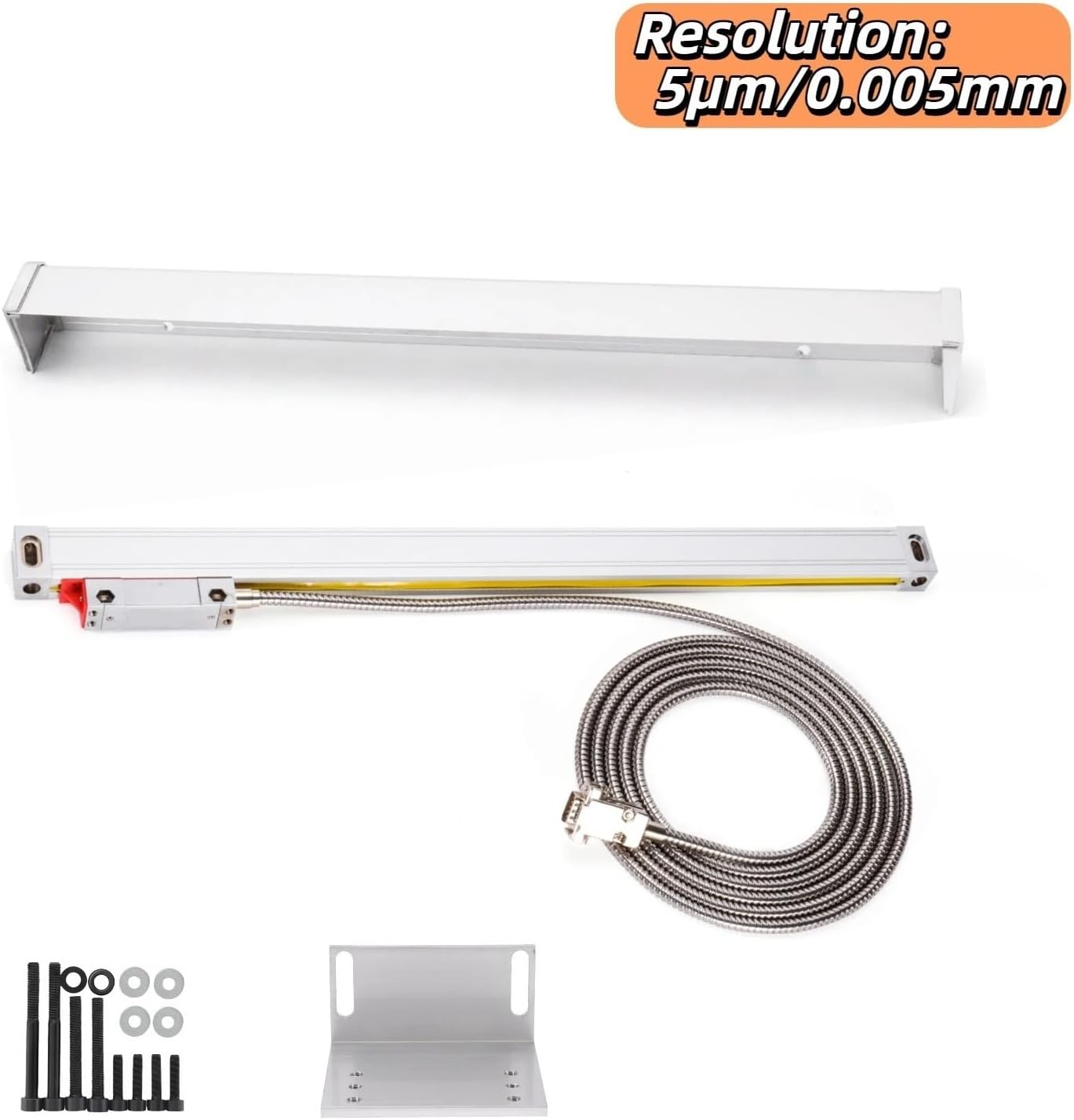

Whatin package 1piecescale scalecover mountingbracket screwbag Linear scale parameter Model: KA35 Available measurement: 100mm to 400mm Total length: measurement +140mm Dimensions Cross section dimensions: 21.5mmx33.5mm Input voltage: 5VDC Power supply: +5V±5%,80mA Moving speed:60m/min Output signal: TTL Connector: 9 pin socket Resolution: 5um/0.005mm Cable length: 3 meters Batteries Included : No Origin : Mainland China Product name : linear scale Travel length : 100,150,200,250,300,350,400mm Input voltage : 5VDC Output signal : TTL Resolution : 0.005mm/5um Cable length : 3 meters Scale overall length : Travel+140mm Installation holes distance : Travel+124mm Cross section size : 21.5mmx33.5mm

• High Resolution:Achieve precise measurements with 0.005mm (5μm) resolution, ensuring accurate linear scale readings.
• Versatile Measurement Range:Available in 100mm to 400mm lengths, this slim linear scale caters to a wide range of measuring needs.
• Optical Encoder Technology:Equipped with optical encoder technology, the KA35 offers reliable and consistent readings.
• Easy Installation:Comes with a mounting bracket and screw bag for a hassle-free setup of your linear scale ruler.
• Durable Construction:Crafted with a robust cross section of 21.5mmx33.5mm.
