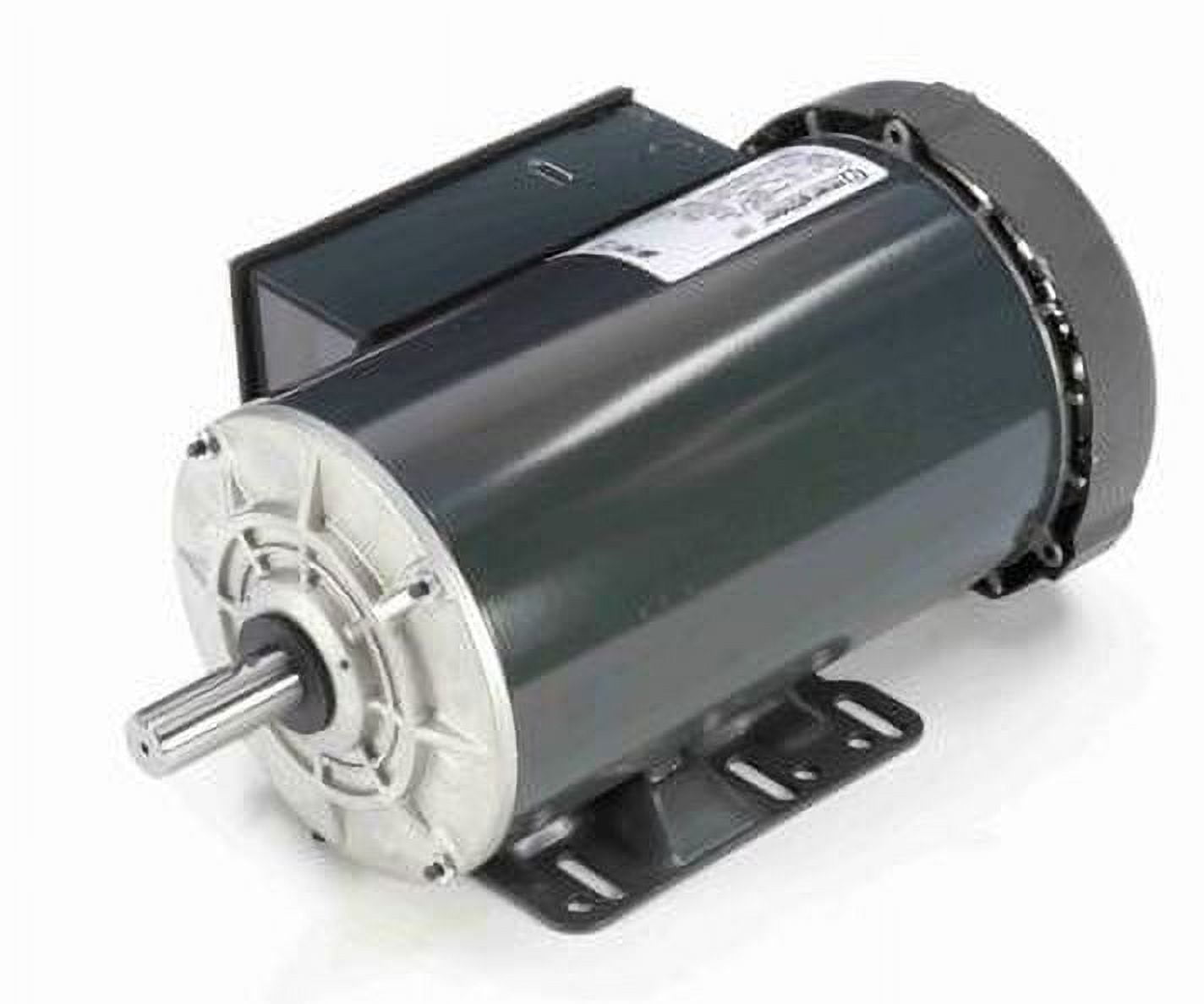

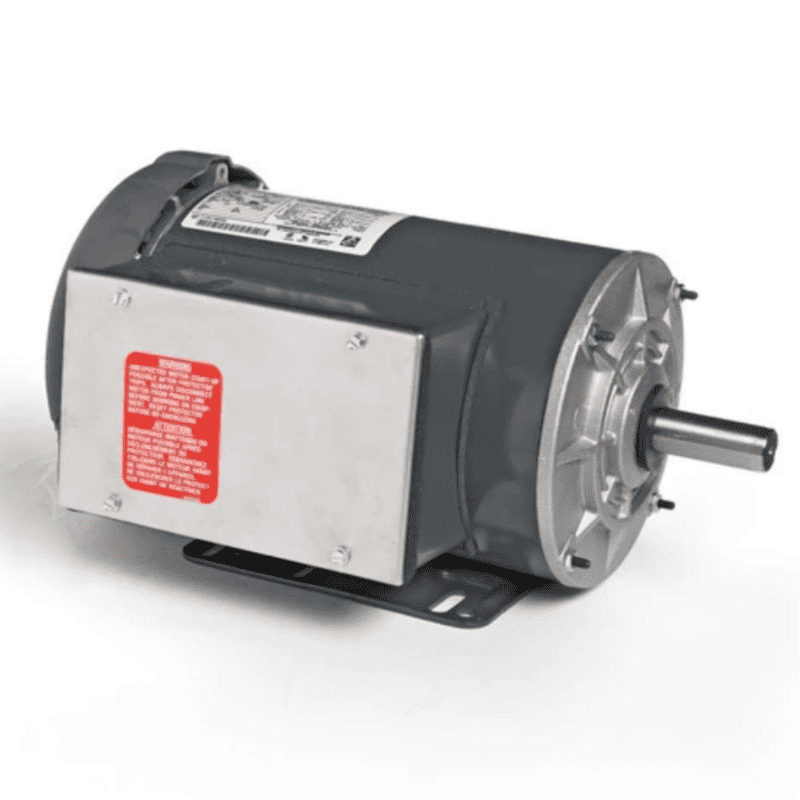

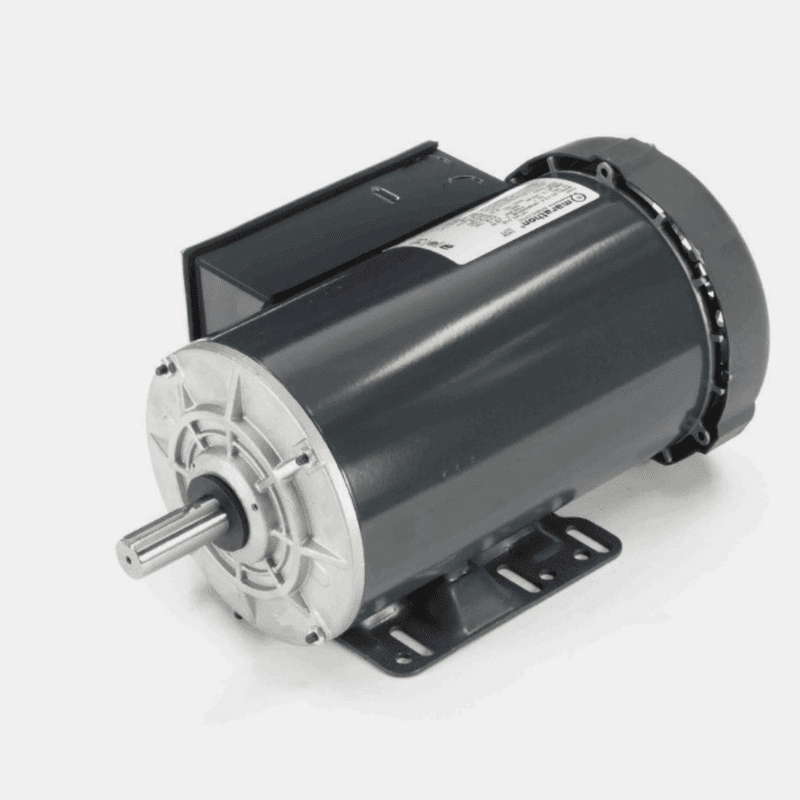

Marathon Motors Farm Duty Motor Model 145TBFR5341 115/200-230 Volts Poultry Fan Motor
Product details
| Management number | 230721070 | Release Date | 2026/06/18 | List Price | US$220.84 | Model Number | 230721070 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 HP, Nameplate RPM 1,740, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 18.8/9.4 A, 145T Frame, Usable @ 208V No, Usable 200V No, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal Crop Dryer Motor Poultry Fan Motor in Multicolor
- 2 Hp 1725 RPM, 18.8/9.4 amps, 115/230V 60hz
- TEFC - Totally Enclosed Fan cooled - Electrically Reversible
- Manual Overload Protection - Service Factor 1.15
- NEMA 145T Frame - Flat Rigid base mount - 7/8" Diameter shaft x 2-1/4"
- Class B Insulated - Ball Bearings w/low temp grease
- Overall Length - 14.87 inches
- Capacitor start design for high starting torque
- Capacitor start/capacitor run design for higher efficiency
- Low temperature manual reset thermal protector
- Totally enclosed and fully gasketed construction for dirty environments
- Condensate drains
- Shaft slinger
- Multicolor
- Poultry Fan Motor
- Crop Dryer Motor
| Horsepower | 2 HP |
|---|---|
| Electric motor type | Universal Motor |
| Electrical phase | Single Phase |
| Volts | 230 V, 115 V |
| Maximum motor speed | 1725 rpm |
| Amps | 1 Amps |
| Brand | Marathon |
| Has nrtl listing certification | N |
| Watts | 230 W |
| Has written warranty | No |
| Features | Adjustable |
| Accessories | Shaft slinger |
| Dimensions | 3.00 x 2.00 x 3.00 in |
| Weight | 3 lb |
| Fire safety certifications | The Marathon Motors MX601 X601 Definite Purpose AC Motor is a robust and versatile solution for a wide range of industrial applications. Engineered with precision and durability in mind, this motor delivers reliable performance in demanding environments. With its definite purpose design, it is optimized for specific tasks, ensuring efficient operation and long-lasting reliability. Whether used in pumps, compressors, conveyors, or other machinery, this motor provides consistent power output and smooth operation. Backed by Marathon's reputation for quality and reliability. |
| Model | 145TBFR5341 |
