MMlove USB Camera Module 720P 30FPS HD Webcam with 170 Degree Fisheye Wide Angle Lens IR Cut Embedded Web Camera for Industrial Machine Vision Support Microphone
US$15.20
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by pbcservices.us
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$15.20
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by pbcservices.us
Free 30-day returns Details
Product details
| Management number | 228848817 | Release Date | 2026/05/31 | List Price | US$15.20 | Model Number | 228848817 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

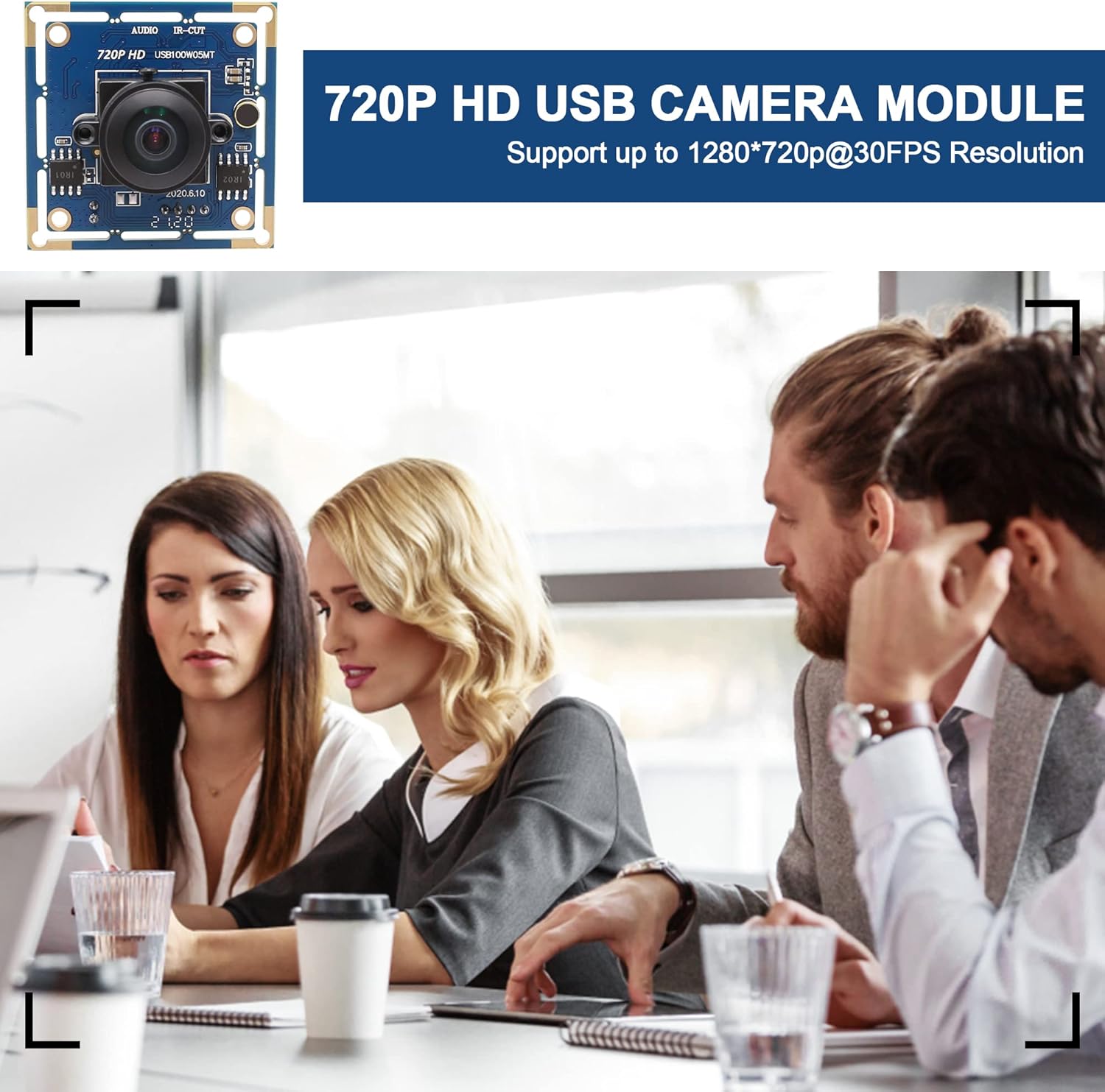

- 【720P USB Camera Module】MMlove 1MP USB camera module comes equipped with a 1/4" NT99141 image sensor for high quality image and low power consumption. The small profile and thin configuration make it good for embedded applications.
- 【USB Webcam Comes with IR-Cut & Microphone】The 720p usb camera module is night vision optional, can support IR cut and IR board for sharp image and accurate color reproduction. Support microphone, audio record function offered.Max. Resolution1280(H)X720(V)
- 【170 Degree M12 Fisheye Lens Camera】1MP web camera with 170 degree wide angle fisheye lens is designed for shooting very wide angles, one camera can almost view whole range. It can capture an extremely wide image and wonderful viewing, give you a different visual experience.
- 【Wide Applications】This 720p usb camera board has a mini size 38x38mm(can cut to 32x32mm) is good for embedded project, widely use for ATM machine, medical machine, Kiosk, PC,automatic vending machine,smart box,safety box,car parking monitor, street monitor, etc. The USB 2.0 camera module comes with 1 meter USB 2.0 cable. Board size/weight is 38X38mm（Compatible 32X32mm）/ about 30g
- 【Plug & Play,Best Universal Compatibility】The usb camera module is easily used, plug and play, no drive installation is required. It can widely works with Win XP/Vista/Win7/Win8/Linux with UVC（above linux-2.6.26）/MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
| ASIN | B0C48SB8XV |
|---|---|
| Zoom | Fixed Focus |
| Brand | MMlove |
| Features | Microphone Input |
| Lens Type | Fisheye Lens |
| Focus Type | Fixed Focus |
| File Format | MJPEG / YUV2 |
| Form Factor | Ultra Compact |
| Item Weight | 30 Grams |
| Sensor Type | CMOS |
| Manufacturer | MMlove |
| BuiltIn Media | 1x USB Camera Modile ;1x USB Cable |
| Camcorder Type | Webcam |
| Shooting Modes | Electronic rolling shutter |
| Antenna Location | The mini 38mmx38mm camera board can be installed in most hidden and narrow position, can be used in machine visions for personal or industrial. It is suitable for robot vision, industrial detection, face recognition, vending machine, gesture recognition, high-speed capture. |
| Operating System | Win XP/Vista/Win7/Win8, Linux with UVC（above linux-2.6.26), MAC-OS X 10.4.8 or later, Android 4.0 or above with UVC |
| Video Resolution | 720p |
| Flash Memory Type | Memory Stick |
| Photo Sensor Size | 1/4 inch |
| Compatible Devices | Skype/Zoom/FaceTime/Hangouts,PC/Laptop/Raspberry Pi |
| Image Aspect Ratio | 16:9 |
| Image Capture Speed | 30 fps |
| Maximum Focal Length | 1.5 Meters |
| Video Capture Format | MJPEG / YUV2 |
| Warranty Description | 120 Days |
| Exposure Control Type | Automatic |
| Are Batteries Included | No |
| Supported Audio Format | MJPEG / YUV2（YUYV） |
| Supported Image Format | 3.7V/lux-sec@550nm |
| Water Resistance Level | Not Water Resistant |
| White Balance Settings | Auto |
| Connectivity Technology | USB |
| Has Image Stabilization | No |
| Display Resolution Maximum | 1280x720 Pixels |
| Effective Still Resolution | 1 MP |
| Effective Video Resolution | 720 Pixels |
