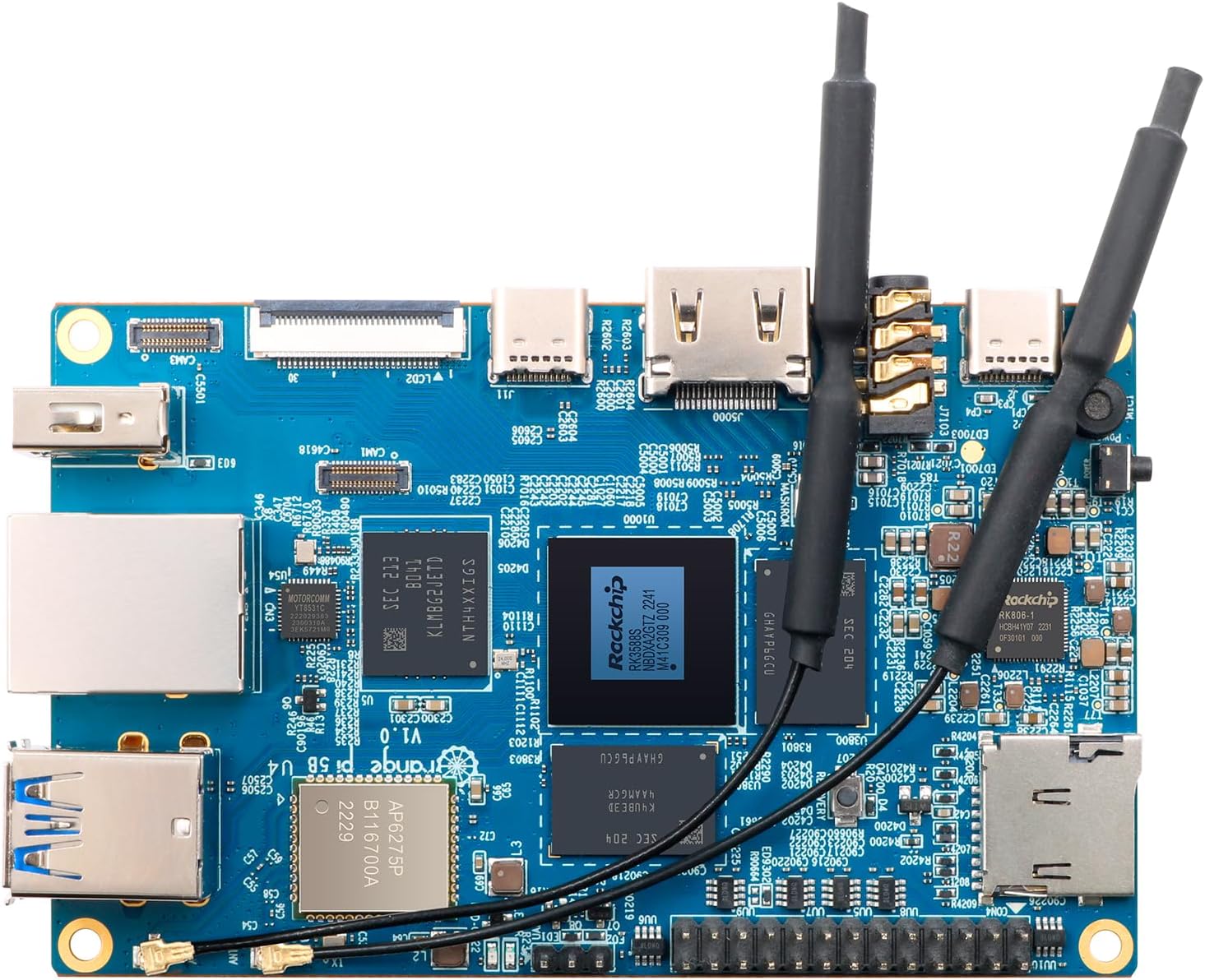

Orange Pi 5B 4GB with 32GB eMMC Rockchip RK3588S 8 Core 64 Bit Wi-Fi6, BT5.0 Single Board Computer, 2.4GHz Frequency Open Source Development Board Run Orange Pi OS,Android,Debian,Ubuntu

Product Introduction:Main control chip: Rockchip RK3588S (8nm LP process)CPU: 8-core 64 bit processor; Typical large and small core architectures for 4-core Cortex-A76 and 4-core Cortex-A55, with a dominant frequency of 2.4GHz for large cores and 1.8GHz for small coresGPU: Integrated ARM Mali-G610; Built-in 3D image engine and 2D image engine; Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2, and Vulkan 1.2NPU: built-in AI accelerator NPU with up to 6 Tops computing power, supporting INT4/INT8/INT16 hybrid computingPMU: RK806-1RAM: 4GB (LPDDR4/4x) Storage: 32GB eMMC; MicroSD (TF) Card SlotUSB: USB3.0 * 1; USB2.0 * 2; Type-C (USB3.0) * 1Video output: HDMI2.1, up to 8K @ 60Hz; DP1.4 (DisplayPort), with a maximum output resolution of 8K @ 30Hz; 2 * MIPI D-PHY TX 4 Lane, configurable up to 4K @ 60HzCamera: MIPI CSI 4 Lane; 2 * MIPI D-PHY RX 4 LaneAudio CODEC: ES8388; 3.5mm headphone jack audio input/output; Input: onboard MIC; HDMI 2.1 eARCEthernet: 10/100/1000Mbps EthernetWIFI, BT module: Onboard WI-FI6+BT 5.0 module, WI-FI6 interface: PCIe, BT interface: PCM+UARTExpansion port: 26Pin double row pin; Supports DC 5V and 3.3V power output; Functional interfaces such as UART, PWM, I2C, SPI, CAN, and GPIO can be configured.Key: 1 * MaskROM key, 1 * RECOVERY key, 1 * On/Off keyPower supply: Support Type-C power supply, 5V @ 4ALED power indicator: red; Status indicator: greenDebug: 3Pin Debug Serial Port (UART)Supported operating systems: Orange OS (Droid), Orange OS (Arch), Orange OS (OH), Debian 11, Ubuntu 22.04, Ubuntu 20.04, Android 12Product size: 62mm * 100mmWeight: 52g

• Orange Pi 5B 4G uses a new generation of 8-core 64-bit processors from Ruixin Micro-RK3588S, specifically quad-core A76+quad-core A55. It adopts an 8nm process design, with a main frequency up to 2.4GHz. It integrates an ARM Mali-G610 MP4 GPU, built-in high-performance 3D and 2D image acceleration modules, and built-in AI accelerator NPU with up to 6 Tops of computing power. It has 4GB (LPDDR4/4x) and 32GB eMMC, dual band Wi-Fi6, BT5.0, and up to 8K display processing capabilities.
• Orange Pi 5B 4G32G Single Board Computer has a variety of interfaces, including HDMI output, Type-C, USB3.0, USB2.0, RJ45 gigabit network interface, TF card socket, 3.5mm headphone jack, MIPI LCD interface, MIPI Camera interface, multi-functional 26 Pin expansion interface, etc
• Orange Pi 5B 4gb Mini PC can be widely used in high-end tablet, edge computing, artificial intelligence, cloud computing, AR/VR, intelligent security, smart home and other fields, covering all AIoT industries.
• Orange Pi 5B microcontroller open source board mini computer supports the operating system Orangepi OS officially developed by Orange Pi, as well as operating systems such as Android 12, Debian 11, Ubuntu 22.04, and Ubuntu 20.04.
• Orange Pi Single Board Computers can builed a computer, a wireless server, Games, music and sounds, HD video, a speaker, Android, Scratch.Pretty much anything else, because Orange Pi is open source.
