ToAuto 3 Axis Digital Readout DRO Display, 5um Precision, TTL Linear Glass Scale, 6", 12", 22"

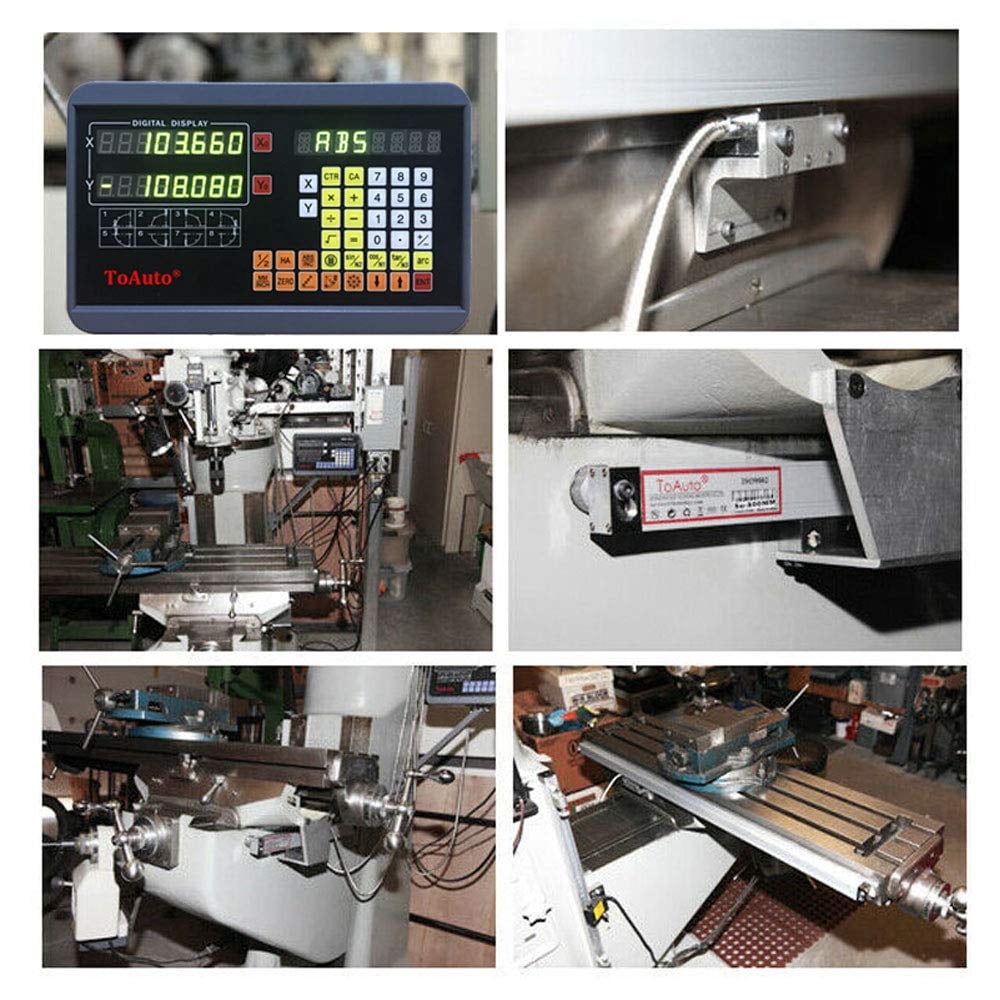

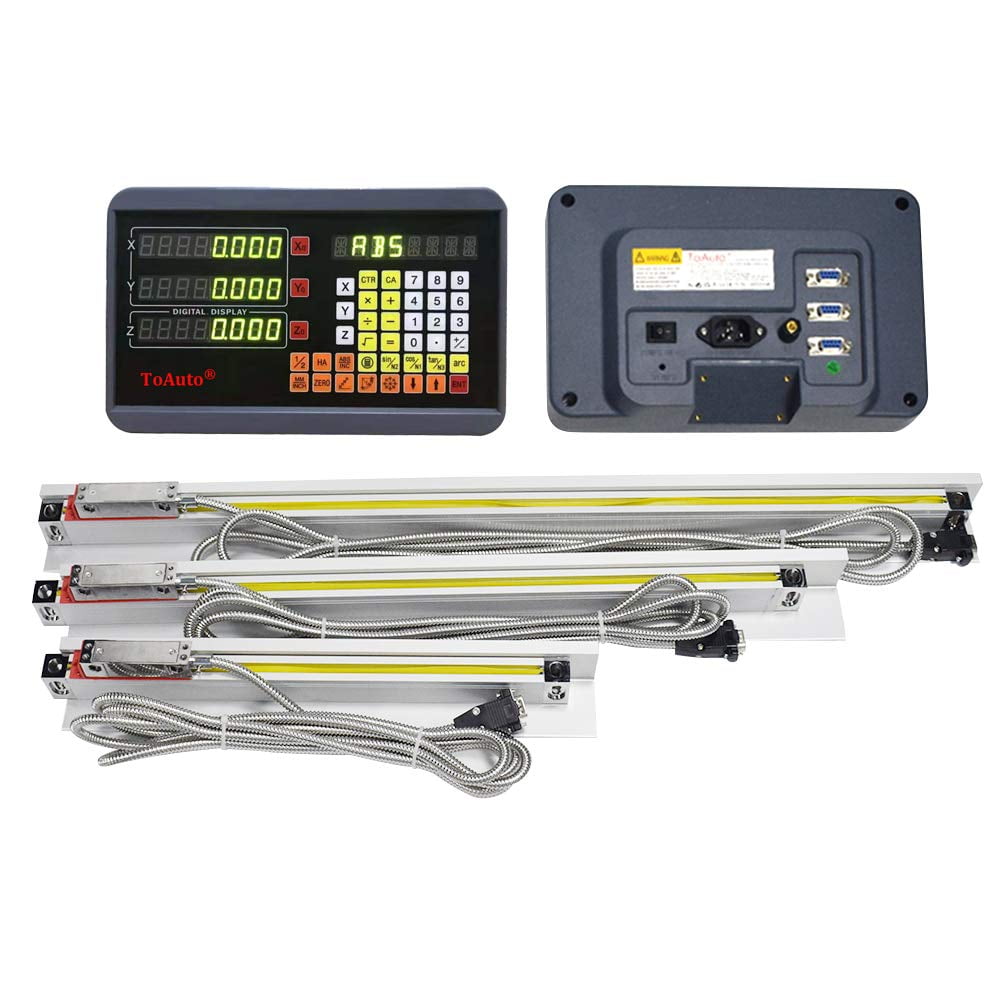

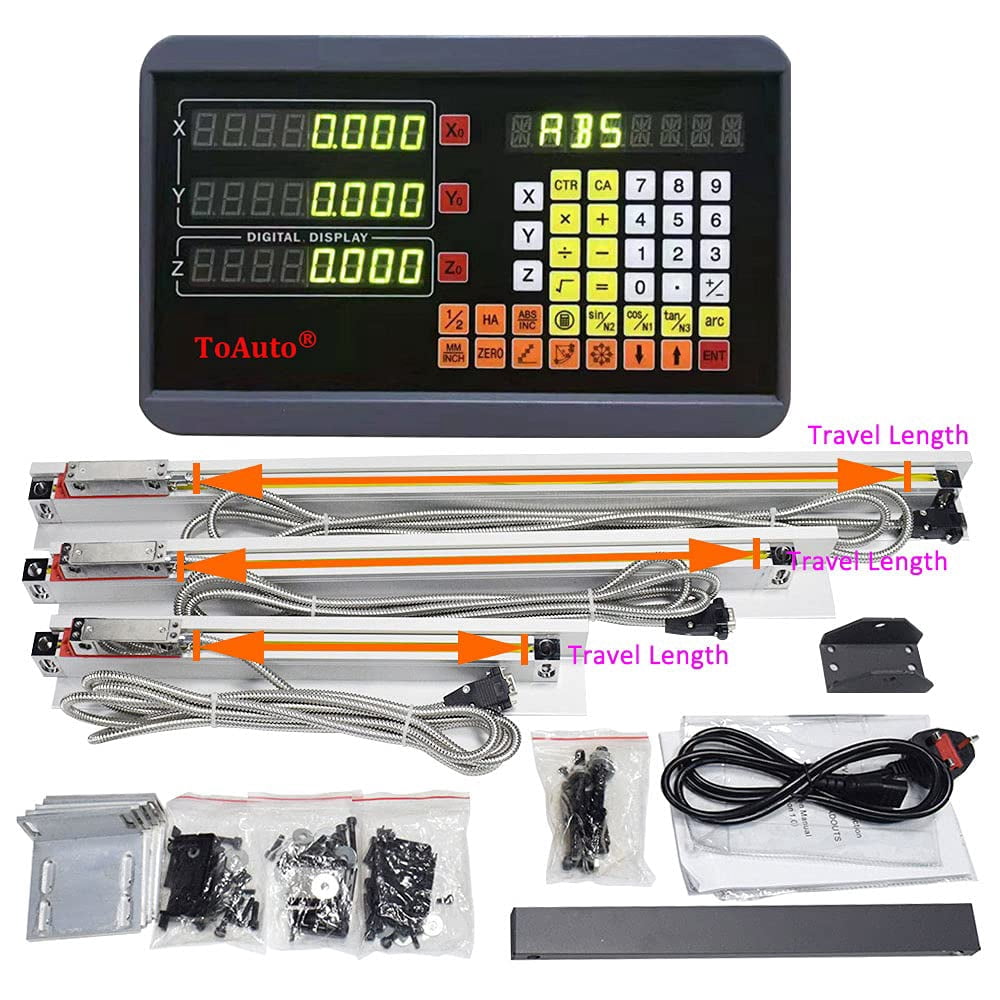

Elevate your machining precision with this 3-axis digital readout display featuring a 5um resolution and glass precision metrology grating. Offering available travel lengths of 6", 12", and 22", this versatile system is ideal for milling, drilling, grinding, and lathe applications. Boasting an 8-bit LED high-definition nixie tube display, 20um pulse signal period, and 100m/min travelling speed, this complete kit includes the readout, scales, protective covers, and all necessary accessories for easy installation. Backed by a 2-year warranty and lifetime technical support, this digital readout is a reliable choice for professional-grade performance.

• Precise 3-Axis Digital Readout Display with 5um resolution for accurate measurements

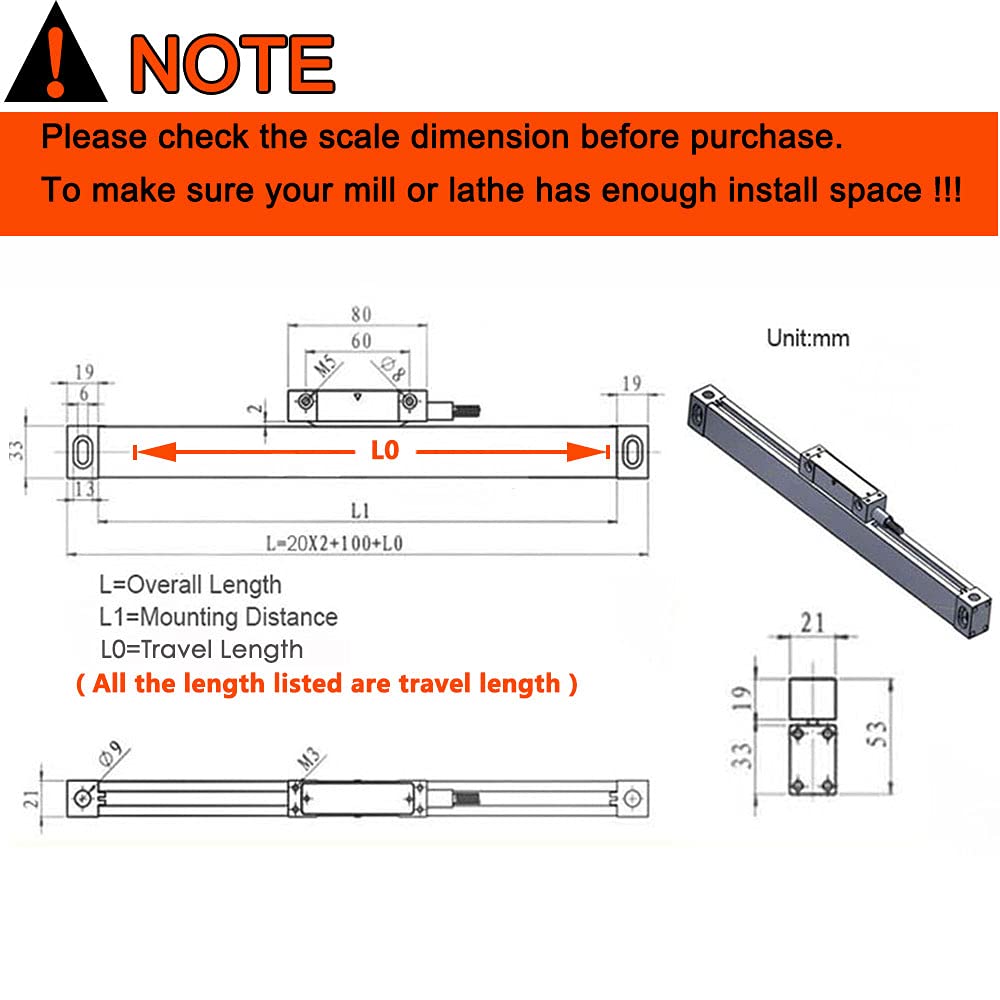

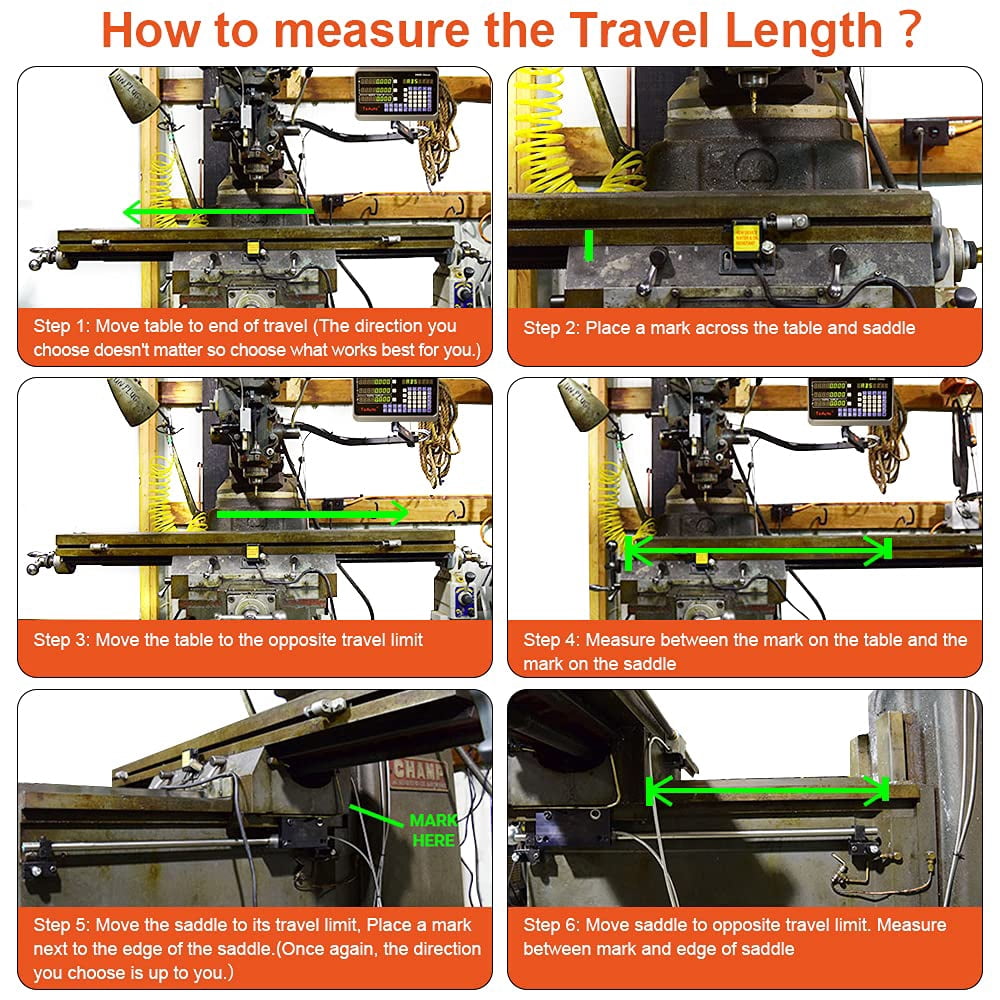

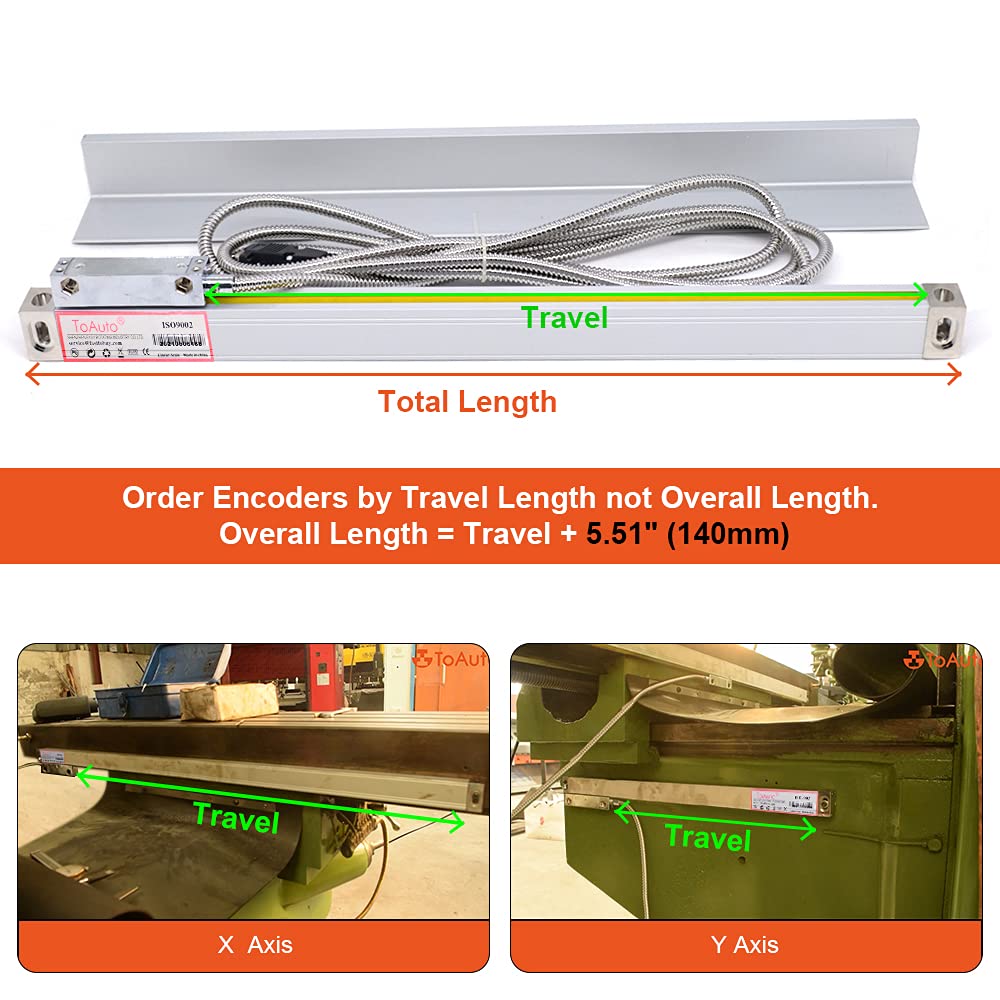

• Available Travel Length: 150mm+300mm+550mm (6"+12"+22"), with Total Length = Travel Length + 140mm
• Supports a wide range of supply voltage from AC 80V to 260V, 50-60Hz, with 15VA power consumption
• Operates in a temperature range of 0 to 45 degrees Celsius and storage temperature of -30 to 70 degrees Celsius, with less than 90% relative humidity
• Allows readout of TTL square wave input signals with a frequency less than 5MHz, with a maximum resolution of 5um for digital display length and 0.0001/pulse for angle

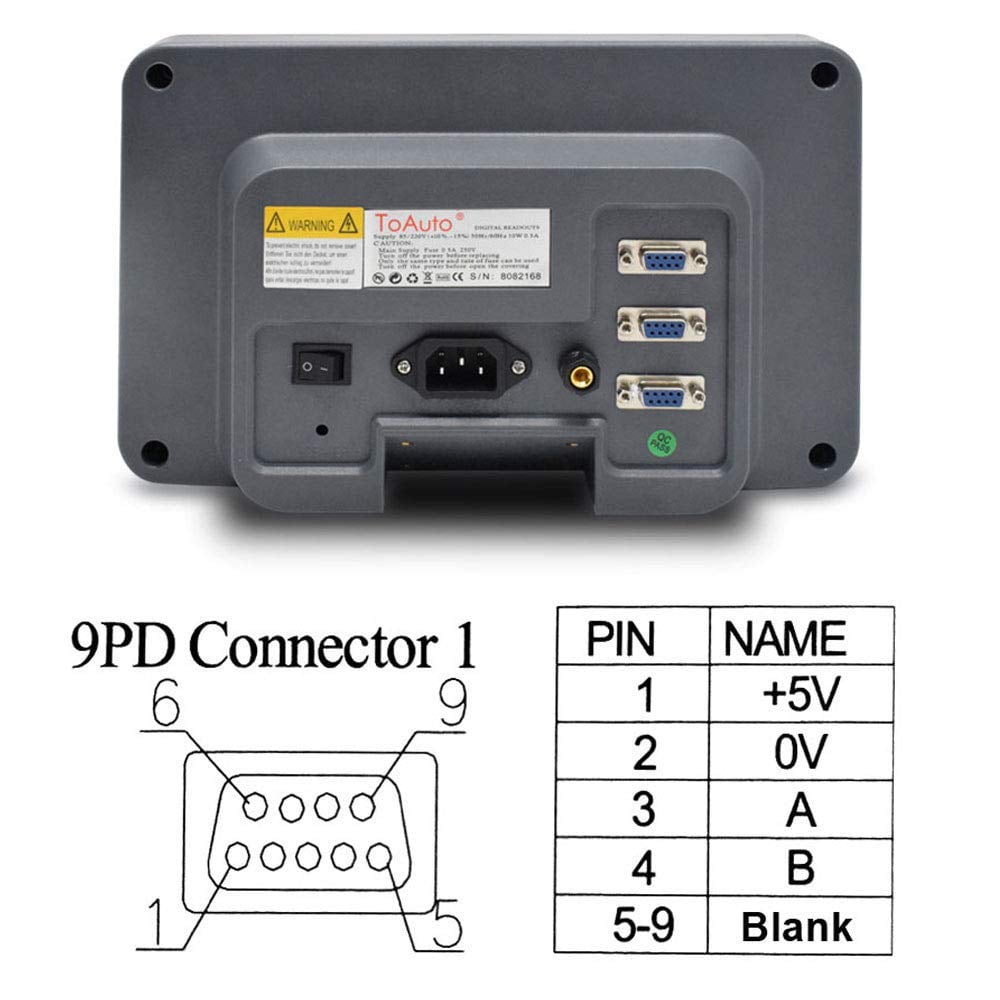

• Equipped with a DB9 (RS232) interface for the linear scale
• Displays in English, with power-off memory backup for up to 10 years using E2PROM
• Durable design with a lifetime of 5 million operations, resisting disturbance and vibration
• Offers advanced features like mm/inch mode, ABS/INC coordinate conversion, zero clearing, reset, liner error compensation, center of 1/2, R arc function, vibration filtering, digital filtering, sleep mode, divide circle evenly, 200 sets sub datum function, and more
• Supports specialized functions such as linear drilling, PCD function, chambering, tool compensation, machining of oblique plane, and calculator
